RS103

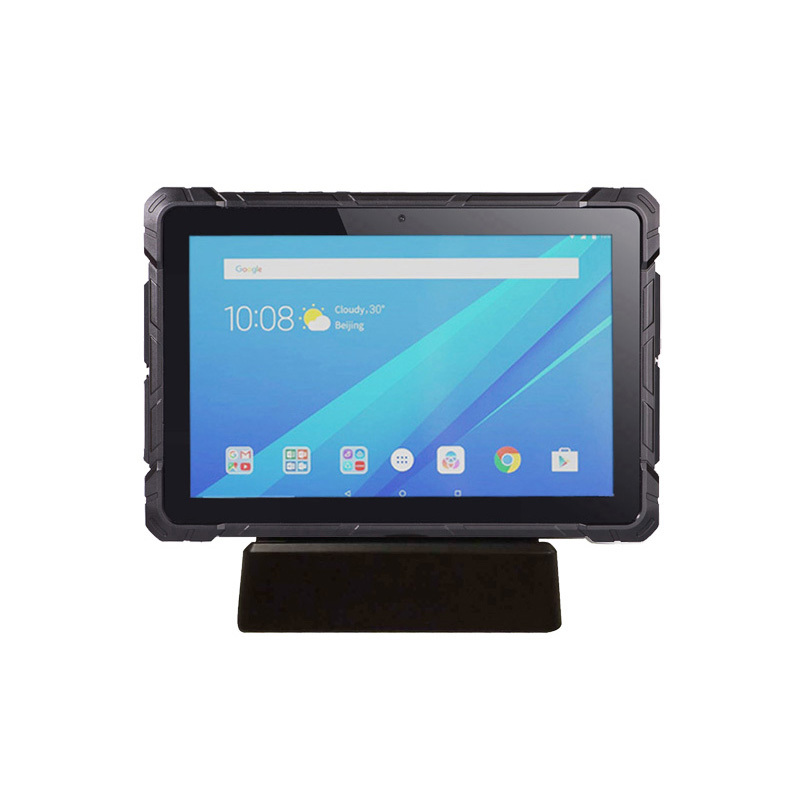

10.1-inch Android Rugged Tablet (IP67)
● Rockchip RK3399 6-core
● 4+64GB
● Powerful GPU Mali T864
● 1920* 1080 IPS / 1280*800 IPS
● 500NITs High Brightness Display (Optional)
● IP67, Dust-Proof+Water-Proof
● RJ45(LAN)+RS232(DB9) Port
● Fingerprint Module
● 12000 mAh Removable Battery
● 8+ Hours Working Time
● 4G LTE (Optional)
● 2D Scanner (Optional)
● NFC (Optional)
● Hand Strap
TECH SPECS
|
Model No. |
RS103 |
|
Screen size |
10.1 inch |
|
IP Level |
IP67 |
|
OS |
Android 7.1 |
|
CPU |
RK3399 Dual-core Cortex-A72 |
|
Quad-Core Cortex-A53 |
|
|
up to 1.8 Ghz |
|
|
RAM |
4GB |
|
ROM |
64GB |
|
Resolution |
1200*1920 (IPS+FHD+300ANSI) |
|
1280*800 (IPS+FHD+500ANSI) (Optional) |
|
|
Touch |
G+G Multi-Touch |
|
Camera |
Front 2MP |
|
Back 5MP with Auto-Focus |
|
|
Wifi |
802.11ac/b/g/n |
|
2.4G+5Ghz Dual Band |
|
|
蓝牙 |
蓝牙 4.0 |
|
3G/4G LTE |
Optional |
|
Optional with external small PCBA |
|
|
Battery |
12000mAH / 3.7V (44WH) |
|
8 Hours+ Working Time |
|
|
I/O ports |
USB 3.0: Type A *1 |
|
USB 2.0: Type A *1 |
|
|
Micro USB2.0*1 (Debug port) |
|
|
Micro HDMI 1.4*1 |
|
|
Audio Jack (3.5mm)*1 |
|
|
TF Card reader*1 (up to 128GB) |
|
|
SIM Slot for 3G/4G LTE(Optional) |
|
|
Video output through HDMI(Up to 4K) |
|
|
DB9(RS232)*1 |
|
|
GPS |
GPS+Beidou |
|
Temperature |
Operation:-10℃~55℃； |
|
Storage：-20℃~70℃ |
|
|
Dimensions |
280mm*184mm*26.5mm |
|
Net weight |
1200g |
|
G-Sensor |
Yes (Built-in) |
|
Accessory |
DC 12V/3A |
|
Handle Straps (Optional) |
|
|
Extension Docking (Optional) |
GALLERY
