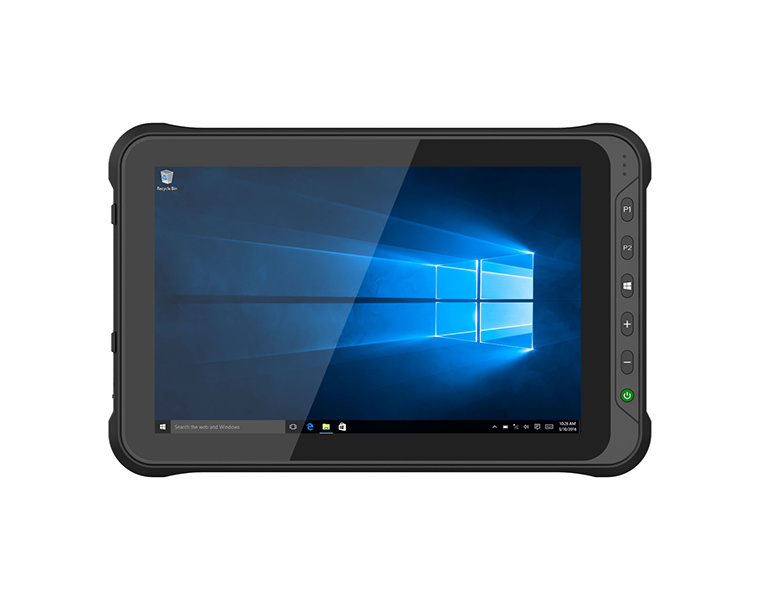

H100
10.1-inch Windows Rugged Tablet
● Intel Atom Z8350 Quad-Core 1.44-1.92GHz
● Windows 10 IOT
● 4+64GB
● 10.1" 1280*800 IPS
● 1000NITS Hight Brightness Display
● Corning Gorilla Glass TP. (7H Hardness)
● 4G LTE (FDD: B1/B3/B5/B7/B8/B20 ,TDD: B38/B40/B41)
● WIFI 802.11(a/b/g/n/ac) 2.4G+5.8G Dual-Band
● Optional: 2D scanner, Fingerprint, NFC, UHF RFID
● Camera: Front 2MP, Back 5MP with Auto-Focus.
● 7500mah big battery
● IP67, Water-Proof & Dust-Proof
● Working Temperature: -10°C to 50°C
● Hand Strap
TECH SPECS
|
Model No. |
H100 |
|
Screen size |
10.1 inch |
| IP Level |
IP 65 |
|
CPU |
Intel Atom Z8350 Quad-Core |
|
OS |
Windows 10 home |
|
RAM |
4GB LPDDR3 |
|
ROM |
64GB EMMC |
|
Display |
800*1280 HD IPS |
|
1000NITS High Brightness |
|
|
16:10 |
|
|
Touch |
G+G, 1.1mm thickness |
|
5-point touch |
|
|
Camera |
Front 2MP，Back 5MP Autofocus |
|
Wifi |
WIFI 802.11(a/b/g/n/ac) |
|
2.4G+5.8G Dual Frequency |
|
|
蓝牙 |
BT4.2 (BLE) class 1 |
|
3G/4G |
LTE FDD: B1/B3/B5/B7/B8/B20/B28A |
|
LTE TDD: B38/B40/B41 |
|
|
WCDMA: B1/B2/B5/B8 |
|
|
GSM: 850/900/1800/1900MHz |
|
|
battery |
3.7V/7500mAh |
|
Continuous use: 6 hours |
|
|
I/O ports |
HDMI 1.4a Type C x 1 |
|
Micro USB 2.0 x 1 |
|
|
SIM Card x 1 |
|
|
TF Card x 1 |
|
|
12pins Pogo Pin x 1 |
|
|
3.5mm standard earphone jack x 1 |
|
|
3.5mm DC jack x 1 |
|
|
GPS |
GLONASS, Beidou, GPS (u-blox) |
|
Temperature |
Operating: -10°C to 50°C |
|
Storage: -30 °C to 70°C |
|
| Humidity |
95% Non-Condensing |
|
Dimension |
217mm x 134mm x 21.4mm |
|
Net weight |
680g |
|
Optional Modules (Optional) |
NFC |
|
2D Scanner |
|
|
UHF |
|
|
Fingerprint collection module |
|
|
Accessory |
Hand Strap |
|
Dock Charger |
|
|
Shoulder Strap (Optional |
