RS130

10.1-inch Windows Rugged Tablet

● Intel Core Skylake m3-6Y30 2.2Ghz

● GPU: Intel® HD Graphics 515

● Windows 10

● 4+128GB / 8+128GB

● 10.1" 1920*1200 IPS

● Sunshine Visible Display (AR Film Coated)

● Corning Gorilla Glass (7H Hardness)

● 10-Point Touch

● 7.4V/5000mAH Battery (Replaceable)

● Front 2MP+Rear 8MP Camera

● 4G LTE

● WIFI 802.11(a/b/g/n/ac) 2.4G+5.8G Dual-Band

● GPS

● IP65, Water-Proof & Dust-Proof

● Working Temperature: -10 °C ~ 50 °C

● Optional: Fingerprint, 2D Scanner, NFC, UHF

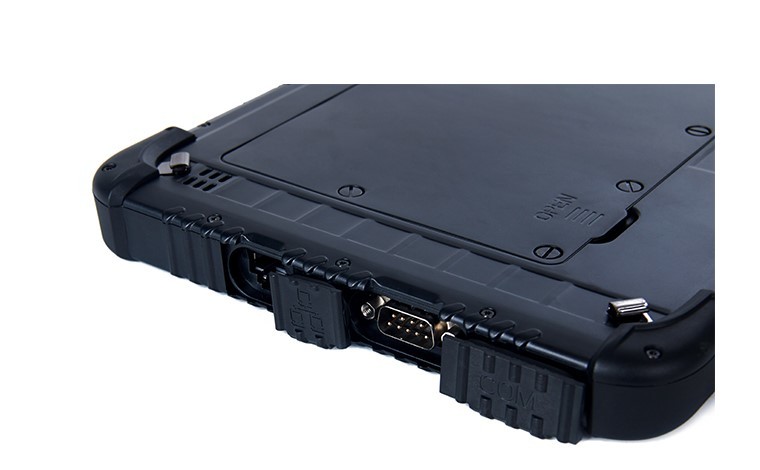

USB 3.0+Micro USB+HDMI

RJ45 & RS232

Anti-Reflection Layer (AR Film) Coated on the Touch Panel to Ensure Display Visible under Sunshine

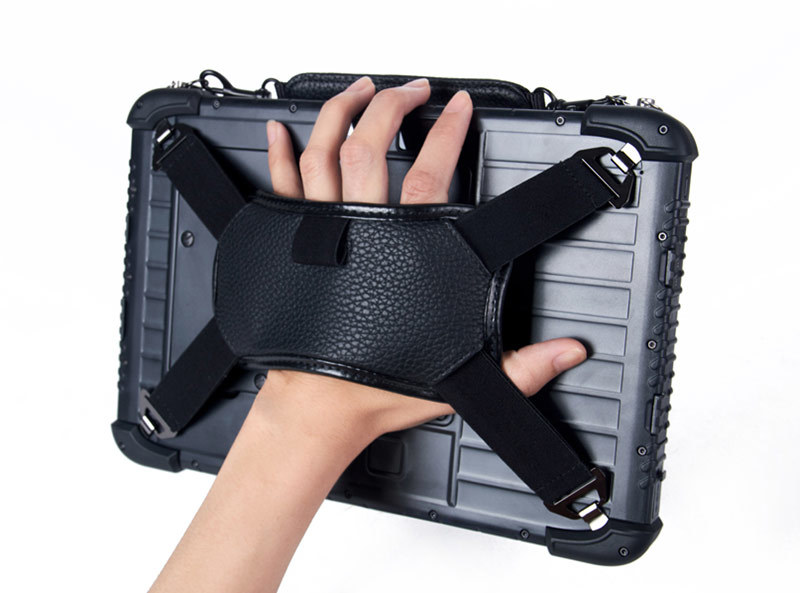

Hand Strap

Charging Dock

Model No.	RS130
Screen size	10.1 inch
IP Level	IP 65
CPU	Intel Core Skylake m3-6Y30
CPU	4M Cache, 2.20 GHz
GPU	Intel® HD Graphics 515
OS	Windows 10 Home
RAM	4GB / 8GB
ROM	128GB
Display	1920*1200 FHD IPS
	AG Film (Visible under Sunshine)
	IPS
Touch	Corning Gorilla Glass
	G+G
	10-Point touch
Camera	Front 5MP
Camera	Back 8MP
Wifi	WIFI 802.11(a/b/g/n/ac)
Wifi	2.4G+5.8G Dual Frequency
蓝牙	BT4.2 (BLE) (10m Distance)
3G/4G	LTE FDD: B1/B3/B5/B7/B8/B20/B28A
	LTE TDD: B38/B40/B41
	WCDMA: B1/B2/B5/B8
	GSM: 850/900/1800/1900MHz
battery	7.4V / 5000mAh Replaceable
battery	Continuous Use: 4-5 hours

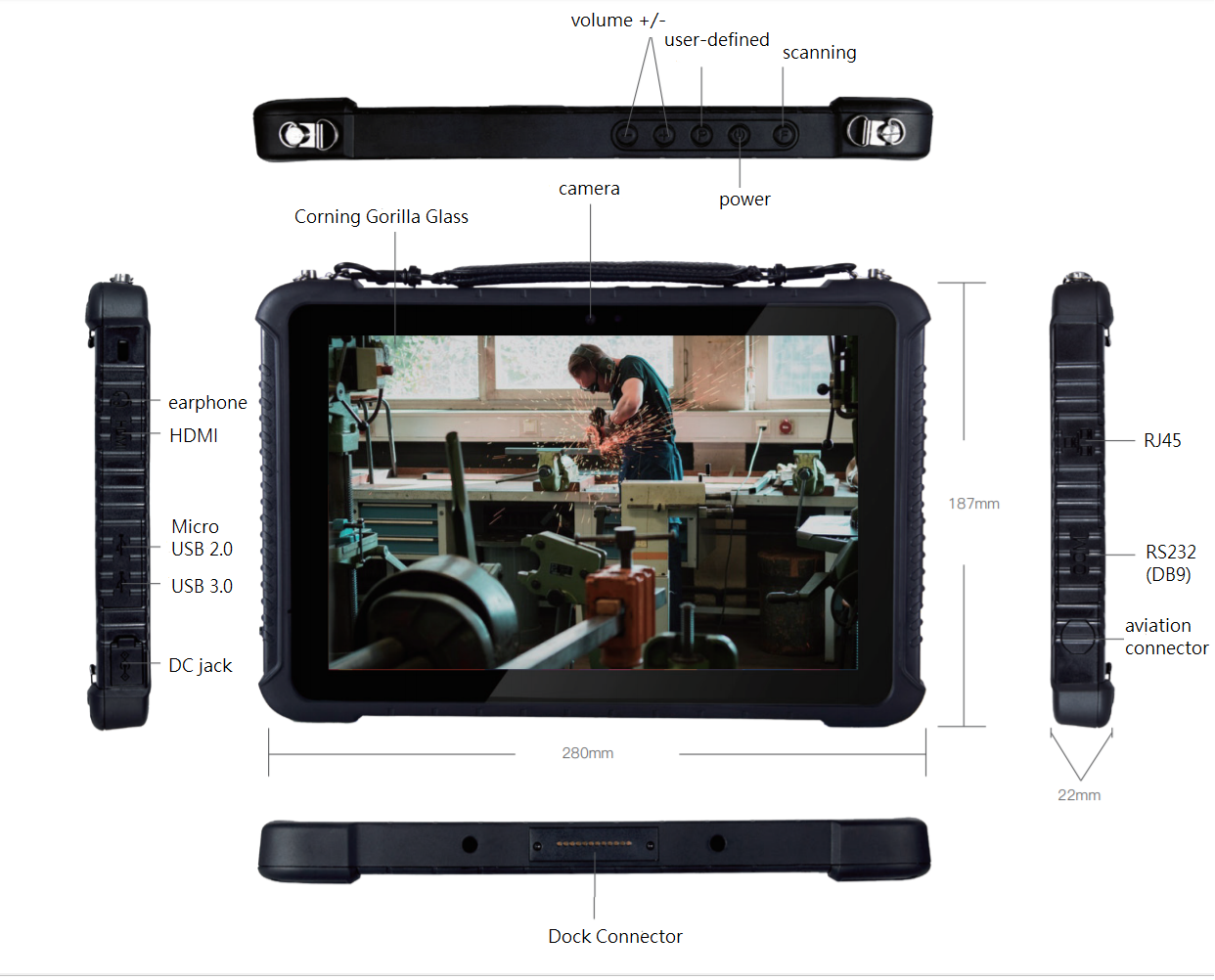

I/O ports	HDMI 1.4a Type C x 1
	Micro USB 2.0 x 1
	RS45 x 1
	RS232 (DB9) x 1
	12pins Pogo Pin x 1
	3.5mm Earphone Jack x 1
	DC jack (12V/4A) x 1
	USB 3.0 x 1
	SIM x 1
	TF Card x 1 (Max 128GB)
GPS	Yes
IP Level	IP65
Drop-Proof	80cm Wood Floor
Temperature	Operating: -10°C to 50°C
Temperature	Storage: -20 °C to 60°C
Humidity	95% Non-Condensing
Dimension	280mm x 187mm x 22mm
Net weight	1014g
Optional Modules	NFC
	Fingerprint
	UHF
	2D Scanner
Accessory (Optional)	Hand Strap
	Dock Charger
	Shoulder Strap
	Leather Case
	Leather Handle
	Replaceable Battery
	3-in-1 Charger
