H101

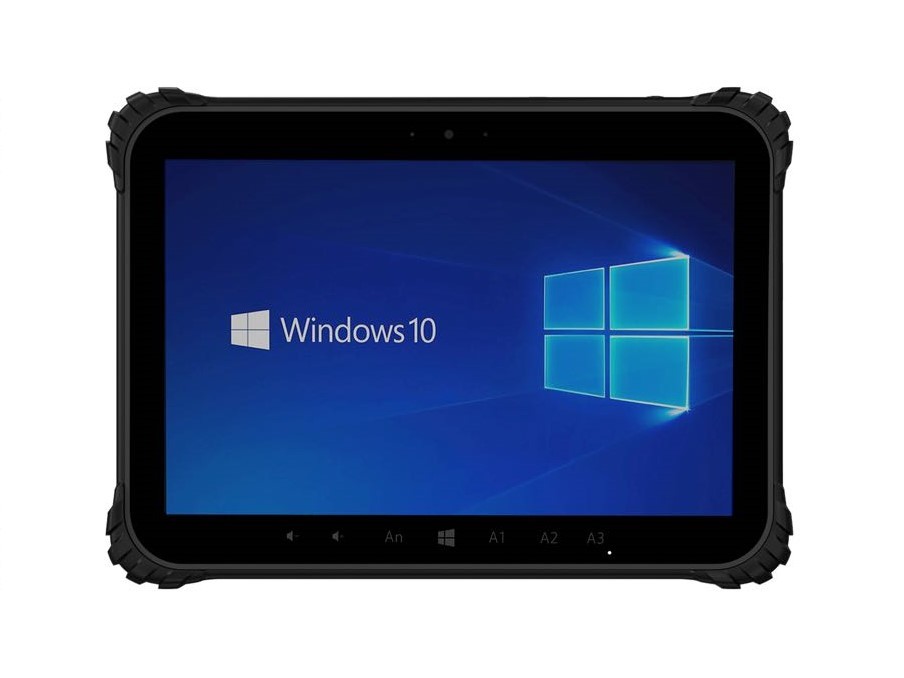

10.1-inch Windows Rugged Tablet
● Intel Apollo Lake Quad-Core 2.2GHz
● Windows 10
● 4+64GB
● 10.1" 1920*1200 IPS
● 450NITS Hight Brightness Display
● Readable under Sunshine
● 4G LTE
● WIFI 802.11 a/b/g/n/ac 2.4G+5GHz
● Fingerprint+NFC+Gyroscope+Light Sensor
● 2D scanner (Optional)
● Front Camera 5MP
● Back Camera 8MP Auto focus
● Flashlight
● 11700mah big battery
● IP67, Water-Proof
TECH SPECS
|
Model No. |
H101 |
|
Screen size |
10.1 inch |
| IP Level |
IP 67 |
|
CPU |
Intel Apollo Lake N3450 |
|
Quad-Core 2.2Ghz |
|
|
OS |
Windows 10 |
|
RAM |
4GB |
|
ROM |
64GB |
|
Display |
1920*1200 FHD |
|
450NITS High Brightness |
|
|
Readable under Sunshine |
|
|
Touch |
G+F |
|
10-Point touch |
|
|
Camera |
Front 5MP |
| Back 8MP Autofocus | |
|
Wifi |
802.11 a/b/g/n/ac |
|
2.4GHz+5GHz |
|
|
蓝牙 |
BT4.1 |
|
3G/4G |
FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B17/B20/B28 |
|
TDD-LTE: B38/B39/B40/B41 |
|
|
TD-SCDMA: B34/B39 |
|
|
WCDMA: B1/B2/B5/B8 |
|
|
EVDO: BC0 |
|
|
CDMA: BC0 |
|
|
GSM: 850/900/1800/1900MHz |
|
|
Battery |
11700mAh |
|
44.46WH |
|
|
I/O ports |
Nano Sim |
|
Micro SD |
|
|
Type C |
|
|
TF Card x 1 |
|
|
12pins Pogo Pin x 1 |
|
|
3.5mm standard earphone jack x 1 |
|
|
3.5mm DC jack x 1 |
|
|
HDMI |
|
| I/O |
Micro SD |
|
USB Type C (OTG) |
|
|
USB 3.0 *2 (TypeA) |
|
|
24 pogopin |
|
|
Nano SimNano Sim |
|
| 蓝牙 |
BT4.1 |
|
GPS |
GPS/GLONASS/Beidou/Galilepo |
|
Temperature |
Operating: -20°C to 60°C |
|
Storage: -30 °C to 70°C |
|
|
Dimension |
256mm x 185mm x 17mm |
|
Net weight |
900g |
|
Modules
|
NFC |
|
Fast Charge |
|
|
Fingerprint |
|
|
G-Sensor |
|
|
Gyroscope |
|
|
Light Sensor |
|
| 2D Scanner |
Optional |
| Accessory |
Shoulder Strap (Optional) |
|
Hand Strap (Optional) |

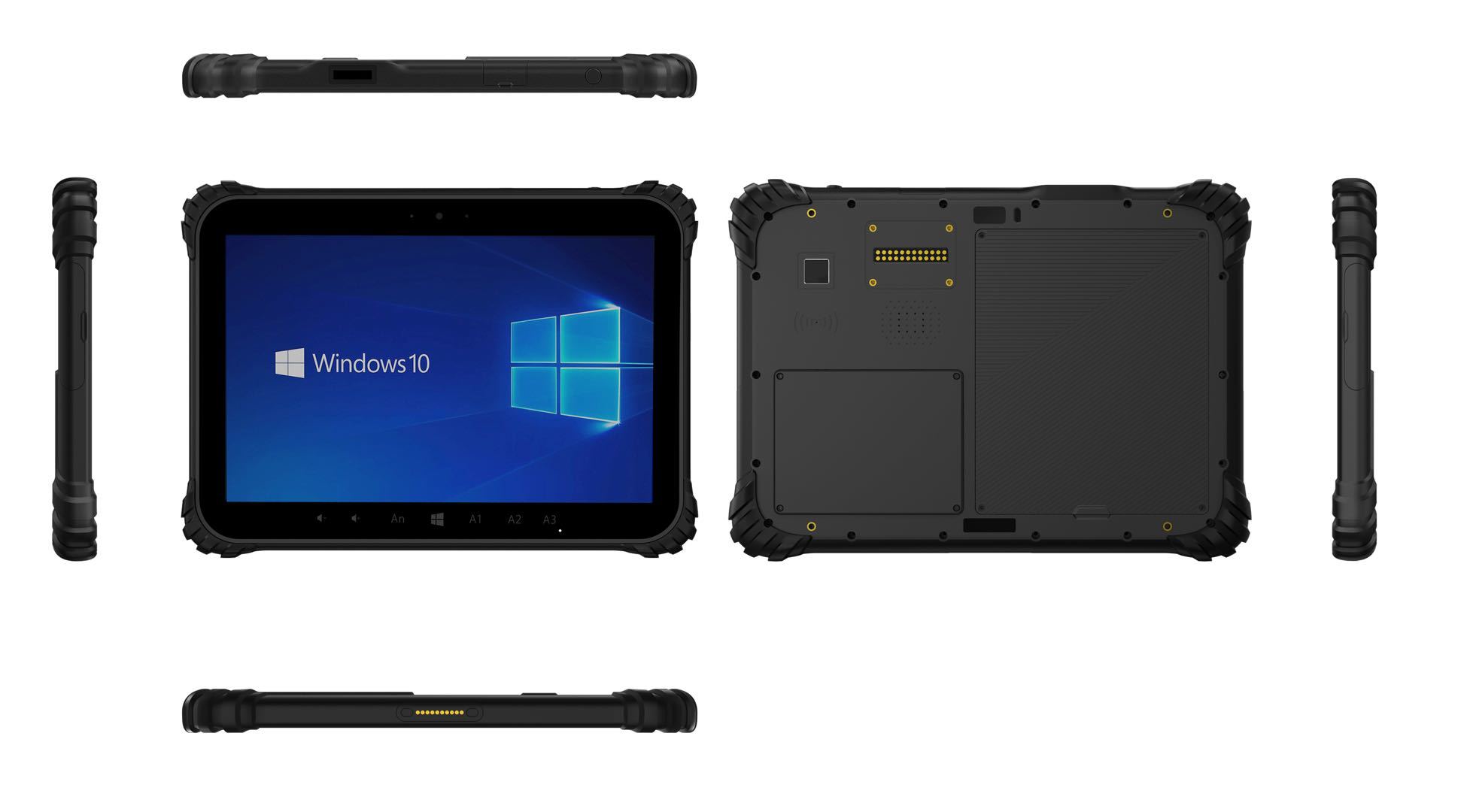

GALLERY
